0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor

Beijing Universe Technologies Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor

Model Number : UM-375-500

Place of Origin : Beijing, China

Brand Name : Univo

Price : $939.00/pieces 1-4 pieces

MOQ : 1

Series : UBMD-375

Features : Rugged 3/8 inch stainless steel housing

Mounting Type : -

Description : Body Welght(grams)18

Type : Linear Displacement Sensor

Usage : displacement measurement

Theory : linear

Output : Volt

Sensitivity(mV/V/.001 Inch) : 3.5

Nominal Range(mm) : ±12.5mm

Contact Now

Products Description
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
Product Paramenters
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
Model
UBMD-375-
UBMD-375-
UBMD-375-
UBMD-375-
UBMD-375-
UBMD-375-
UBMD-375-
parameter
25
50
100
250
500
1000
2000
Range (inches)
±0.025
±0.050
±0.100
±0.250
±0.500
±1.00
±2.00
Range (mm)
±0.63
±1.25
±2.50
±6.25
±12.5
±25.4
±50.8
Sensitivity (MV/V/. 001 inches)
3.5
1.7
1.8
2.5
1.7
0.75
0.5
Sensitivity (mV/V/mm)
138
67
71
98
67
30
19.7
Primary impedance (Ω)
95
345
345
505
130
240
540

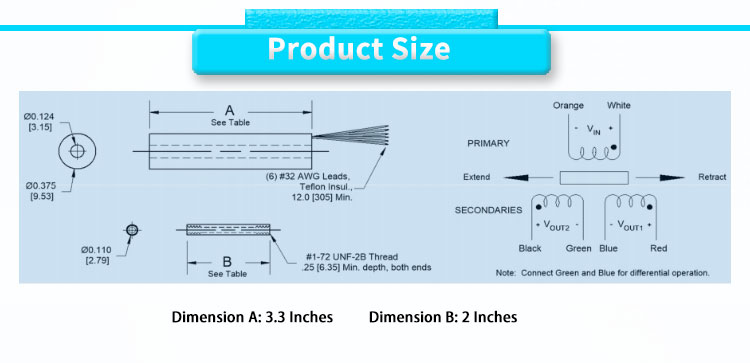

Size "A" (inches)
0.45
0.75
1
1.75
3.3
5.5
9.95
Size "B" (inches)
0.4
0.6
0.65
1.15
2
3
5.5
Main body weight (grams)
3
6
6
11.5
18
28
56
Iron core weight (grams)
0.3
0.5
0.5
1
1.6
2.6
5.2
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
Why Choose Us
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
Company Profile
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
Our Advantages
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
Product packaging
0.375 Inch Diameter UM-375-500 LVDT High Precision Micro Linear Displacement Sensor
FAQ

Q1. What are your packaging conditions?
Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the
product.
Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days.
Q3. How is your delivery time?
Answer:General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us.
Q4. What is your minimum order quantity?
Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation.
Q5. How do you ensure good product quality?
Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers.
Q6. Can you produce based on samples?
Answer: Yes, we can produce according to your samples or technical drawings.
Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands.
Q8. How long is the warranty period for your product?
Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty.
Q9.How to deliver?
Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or useyour own courier account to collect shipping fees.
Q10. Can I take the sample?
Answer: You can contact us to help you get the samples as soon as possible.

Purchase guide
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~+125 °C ?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: DIN43650,Packard, Direct lead?
6. Order quantity: ?
